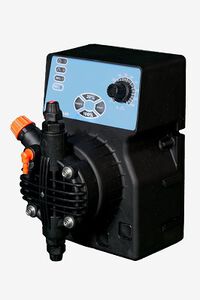

Etatron DLX MA/AD 0810 PP Solenoid metering pump PLX 23 228 AA 0810
flow rate at max. pressure [l/h]: 08 | max. pressure [bar]: 10 | mL per stroke: 1,11 | power [W]: 58 | current [A]: 0,25 | CP: E | std. power supply: 230V, 50-60 Hz
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Etatron PTFE diaphragm solenoid metering pump DLX MA/AD 0810
Partnumber: PLX 23 228 AA 0810 |
Etatron DLX MA/AD 0810 PP Solenoid metering pump PLX 23 228 AA 0810 |
The DLX pump series is a proven PTFE diaphragm solenoid metering pump that features a wide range of control options. Since its market launch, the DLX pump series has proven its reliability and quality. It is used in many chemical metering applications where moderate flow is required at back pressures up to 20 bar (290 PSI).
Properties:
Anlaoge diaphragm metering pump |
Operating mode: Manuel 0-20% - 0-100% |
Accessories
Installation set: PVDF injection valve, PVDF foot filter, PVC suction hose and PE pressure hose |
Tech. Details
| Product Information | ||
| Product information. | Type. | Magent diaphragm metering pump. |
| Product number |
PLX 23 228 AA 0810 | |
| Product name . |
DLX MA/AD 0810 | |
| Material dosing head |
PP | |
| Electrical data |
Electrical power W. | 58 |
| Voltage supply V | 230V, 50-60 Hz | |
| Current supply [A] | 0.25 | |
| Net frequency Hz | 50-60 Hz | |
| Protection class. | IP65 | |
| Type of cable plug. | EU | |
| Dosing data |
Dosing capacity Max. [l/h] | 08 |
| Dispensing pressure Max. [bar] | 10 | |
| Suction height suction phase [m] | 2 | |
| Stroke volume per imp [ml] | 1.11 | |
| Stroke frequency [imp/min] | 120 | |
| Controls |
Operating modes | Manuel 0-20% - 0-100% |
| Enter | Level Sensor | |
| Output | N/A | |
| Alarm. | N/A | |
| Display. | N/A | |
| Material | Material dosing head | PP |
| Material gasket. | FPM (Viton) or EPDM (Dutral) | |
| Valve ball material. | Ceramics | |
| Membrane material | PTFE | |
| Dosing medium | Viscosity [mPas] | 400 |
| Density kg/m³ | 1 | |
| Construction | Pump type. | Magent diaphragm metering pump. |
| Ventilation [Manual, Automatic] | Manuel,(Automatic on request) | |
| Valve type [bullet] | Ball valve. | |
| Hose connection: | N/A | |
Variants
| Type | max. flow | CP Standard | max. print | max. Pulses/minute | mL per hub | std. Sp.-supply | Power (W) | current (A) . | Weight (kg) |
| 0115 | 1 | E | 15 | 120 | 0.14 | 230V/50-60 HZ | 37 | 0.16 | 2.3 |
| 2 | 10 | ||||||||
| 3 | 5 | ||||||||
| 0220 | 2 | C | 20 | 0.28 | 58 | 0.25 | 2.9 | ||
| 0507 | 5 | E | 7 | 0.69 | 37 | 0.16 | 2.3 | ||
| 6 | 5 | ||||||||
| 8 | 2 | ||||||||
| 0810 | 8 | A | 10 | 1.11 | 58 | 0.25 | 2.9 | ||
| 10 | 7 | ||||||||
| 12 | 3 | ||||||||
| 1504 | 15 | E | 4 | 2.08 | |||||
| 2003 | 20 | B | 3 | 2.6 |
