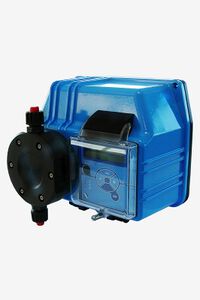

Etatron BT pH-Rx-Cl/M 1010 PVDF solenoid metering pump PBT 27 043 5E 1010
flow rate at max. pressure [l/h]: 10 | max. pressure [bar]: 10 | mL per stroke: 1.04 | power [W]: 90 | current [A]: 0.39 | CP: E | std. power supply: 230V, 50-60 Hz
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Etatron PTFE diaphragm solenoid metering pump BT pH-Rx-Cl/M 1010
Partnumber: PBT 27 043 5E
|
Etatron BT pH-Rx-Cl/M 1010 PVDF solenoid metering pump PBT 27 043 5E 1010
|
The BT-BTB pH-Rx-CL/M pump series is a proven PTFE diaphragm solenoid metering pump that features a wide range of control options. Since its launch, the BT-BTB pump series has proven its reliability and quality. It is the ideal solution for many chemical metering applications requiring medium flow (BTB) or high flow (BT) at back pressures up to 20 bar (290 PSI).
Variants
| Version . | Flow rate l/h | Pressure bar | mL / Hub | Power supply | Power (W) | Current (A) | CP Standard | Version . | Flow rate l/h |
| 0510 | 5 | 10 | 0.52 | 230V/50-60Hz | 110 | 0.48 | E | 510 | 5 |
| 0520 | 5 | 20 | 0.52 | 110 | 0.48 | C | 520 | 5 | |
| 1010 | 10 | 10 | 1.04 | 90 | 0.39 | E | 1010 | 10 | |
| 2005 | 20 | 5 | 2.08 | 110 | 0.48 | B | 2005 | 20 | |
| 3004 | 30 | 4 | 2.8 | 124 | 0.54 | D | 3004 | 30 | |
| 5003 | 50 | 3 | 4.6 | 124 | 0.54 | D | 5003 | 50 | |
| 8001 | 80 | 1 | 7.4 | 124 | 0.54 | D | 8001 | 80 |
Features
Membrane dosing pump with a microcontroller for monitoring pH, Rx (mV) and chlorine (ppm) | |
Proportional / manual dosage 0-100%. | |
measuring range 0 - 14 pH, -1000 - + 1400mV, 0 - 2, 0 - 20, 0 - 200ppm4 - | |
20mA output | |
Manual or automatic temperature compensation 0-100 ° C | |
Input for level monitoring and flow sensor relay output | |
level alarm | |
Liquid low option available to prevent loss of prime. Flashing LED indicates pump stroke frequency. Manual polypropylene vent head for safe and easy venting with durable, leak-free vent valve assembly. Diaphragms are robust PTFE machine parts without composite layers, for optimum flexibility and long life. A wide range of chemicals can be pumped. | |
Pumpenkopf: x andere Materialien auf Anfrage | |
Suction hose: PVC , PVDF, PE or PTFE | |
Other features
Valves and seals: FPM (Viton), EPDM (neutral), nitrile, silicone, ceramic and alloys. | |
Wall mounting (BT) or foot mounting (BTB) possible. | |
BTB - Pump casing made of acid-resistant, mica-filled, reinforced polypropylene; | |
BT - Pumpengehäuse aus Aluminiumguss gefertigt, geschützt durch Doppelbeschichtungen mit Epoxidharzlack;Wasserbeständigkeit für den harten Einsatz. Schutzart: IP65 | |
