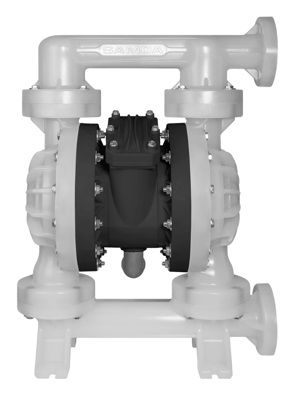

Samoa Industrial UP20 2" PP/Santoprene double diaphragm pump UP20B-FPS-PMA

    4,900.00 € 4,900.00 € 4900.0 EUR

    4,900.00 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Max flow rate (l/h): 39000 | Max. Max. pressure (bar): 8 | Max. suction head (m): 8 | Housing (wetted): Polypropylene | Seal : n.a. | Fluid temperature (max °C): 0 - 70


    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Samoa Industrial UP20 2" PP/Santoprene double diaphragm pump UP20B-FPS-PMA


    Partnumber:UP20B-FPS-PMA


    Samoa Industrial double diaphragm pump UP20 2" PP/Santoprene UP20B-FPS-PMA

    The 2" (51 mm) air-operated diaphragm pumps made of injection-moulded plastic parts achieve a delivery rate of up to 650 l/min (172 gal/min). They are available in natural or conductive polypropylene and PVDF for optimum fluid compatibility and corrosion resistance. corrosion resistance. Laterally offset inlet and outlet ports to prevent fouling of the pump body in the event of leaks. Inlet and outlet manifolds can be rotated 180º for maximum versatility in pump installation. The flanged screw connections comply with both DIN and ANSI standards. These pumps are used for transferring, filling and batching in a variety of applications. batching in a variety of industries.

    Application area


    n.a.

    Tech. Details

    Product information
    Product informationNameDouble-diaphragm pump UP20 2" PP/Santoprene
    Model
    UP20 2" PP/Santoprene
    Series
    Pivot®
    Manufacturer
    Samoa Industrial
    Product number manufacturer
    UP20B-FPS-PMA
    Technical data:
    Pumps type Double diaphragm pump
    Max delivery rate (l/h) 39000
    Max. Pressure (bar) 8
    Air intake height dry (up to max. mWS*): 5
    Max intake height (m) 8
    Air pressure (max. bar): 8
    Air pressure start-up (min. bar): 1.5
    Displacement per chamber ( in cm³): 2250
    Displacement per cycle ( in cm³): 4500
    Sound pressure level ( in dB) 85 (at 70 psi and 50 cycles/min.)
    Construction
    Size (inch) 2"
    Air intake ( Ø mm) 3/4" NPT (F)
    Internal pressure port (inches) 2"
    Suction nozzle (inch) inside 2"
    Properties:
    Explosion protection No
    Construction: Thread (type/size) 2" ANSI/DIN flange
    Certification
    2006/42/EC
    Controls:
    Controls: Pneumatic
    Performance: Performance: 650 l/min
    Mounting variants (floor/wall)
    n.a.
    Materials:
    Casing (air area) Conductive Polypropylene
    Housing (touched by media)
    Polypropylene
    Valve ball
    Santoprene
    Membrane
    Santoprene
    Gasket
    n.a.
    Valve seat Polypropylene
    Pushrod
    n.a.
    Medium: Solids (max. ø mm): 6.4
    Promoting medium temperature (max °C):
    0 - 70
    Delivery information:
    Gross/net weight (kg) 42
    Country of origin
    ES
    Customs tariff number
    8413 5080
    Product (pcs)
    1 pc.
    Accessories
    n.a.
