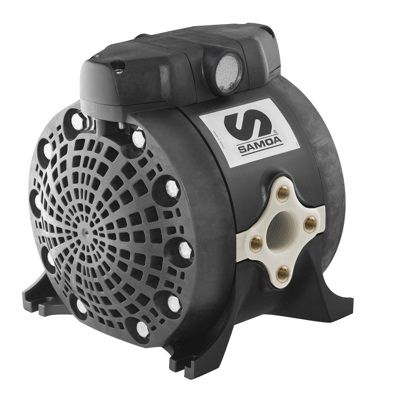

Samoa Industrial DF100 1" PP/PTFE Double diaphragm pump DF100PPYTWTTBAS

    1,685.00 € 1,685.00 € 1685.0 EUR

    1,685.00 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Max. delivery rate (l/h): 6000 | Max. Max. pressure (bar): 8 | Max. suction head (m): 7 | Housing (wetted parts): Polypropylene | Seal : PTFE | Fluid temperature (max °C): 0 - 70


    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Samoa Industrial DF100 1" PP/PTFE double diaphragm pump DF100PPYTWTTBAS


    Partnumber:DF100PPYTWTTBAS


    Samoa Industrial double diaphragm pump DF100 1" PP/PTFE DF100PPYTWTTBAS

    Air-operated double diaphragm pumps for dosing, spraying, transferring, pumping out and distributing a wide range of liquids. Ideal for standard applications with medium flow rates. The pump's wetted parts are suitable for the most aggressive liquids and use in corrosive environments. The air motor (pneumatic directional control valve and air chamber covers) is made of polypropylene. Fully groundable pumps with ATEX certification are available for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C).

    Application


    Wide compatibility, also with acids and alkalis for water treatment and for chlorinated CIP cleaners for domestic/industrial cleaning processes.

    Tech. Details

    Product information
    Product InformationNameDouble diaphragm pump DF100 1" PP/PTFE
    Model
    DF100 1" PP/PTFE
    Series
    Directflo®
    Manufacturer
    Samoa Industrial
    Product Number Manufacturer
    DF100PPYTWTTBAS
    Technical data:
    Pumps type Double diaphragm pump
    Max delivery capacity (l/h) 6000
    Max. Pressure (bar) 8
    Suction height dry (up to max. mWS*): 4.5
    Max intake height (m) 7
    Air pressure (max. bar): 8
    Air pressure start-up (min. bar): 1.5
    Displacement per chamber ( in cm³): 250
    Displacement per cycle ( in cm³): 500
    Sound pressure level ( in dB) 80
    Construction
    Size (inch) 1"
    Air intake ( Ø mm) 3/8" NPSM (F)
    Internal pressure (inches) 1"
    Suction port (inch) inside 1"
    Features:
    Explosion protection No
    Connection: Thread (type/size) 1" BSP
    Certification
    2006/42/EC
    Controls:
    Controls: Pneumatic
    Performance: Performance: 100 l/min
    Mounting variants (floor/wall)
    floor/wall
    Fuels:
    Housing (air area) Polypropylene
    Housing (media-touched)
    Polypropylene
    Valve ball
    PTFE
    Membrane
    PTFE
    Gasket
    PTFE
    Valve seat
    PVDF
    Pushrod
    Hastelloy
    Medium: Solids (max. ø mm): 4
    Promoted medium temperature (max °C):
    0 - 70
    Supply information:
    Gross/net weight (kg) 5.1
    Country of origin
    ES
    Tariff number
    8413 5080
    Product (pcs)
    1 pc.
    Accessories
    n.a.
