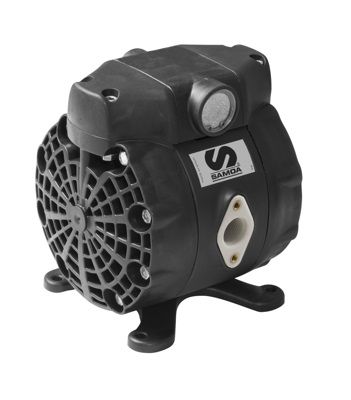

Samoa Industrial DF50 1/2" Acetal/PTFE Double Diaphragm Pump DF50PDSTSTBAS
Max flow rate (l/h): 3000 | Max. Max. pressure (bar): 8 | Max. suction head (m): 8 | Housing (wetted): Conductive acetal | Seal : PTFE | Fluid temperature (max °C): 0 - 70
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Samoa Industrial DF50 1/2" Acetal/PTFE Double Diaphragm Pump DF50PDSTSTBAS
Partnumber:DF50PDSTSTBAS
|
Samoa Industrial Double Diaphragm Pump DF50 1/2" Acetal/PTFE DF50PDSTTBAS
|
Air-operated double diaphragm pumps for dosing, spraying, transferring and distributing a variety of liquids with low to medium flow rates. The pump's wetted parts are suitable for even the most aggressive liquids and use in corrosive environments. The air motor (pneumatic directional control valve and air chamber covers) is made of polypropylene. DF50T are double inlet pumps for mixing liquids of comparable viscosity in a 1:1 ratio. Both the initial liquids and the resulting mixture must be compatible with the pump's wetted materials. For use in potentially explosive atmospheres, fully groundable pumps with ATEX certification are available (Ex II2 GD IIB/IIC 95 ˚C).
Application
ATEX pump. Solvents (ketones, acetates, aldehydes, aromatic
and chlorinated hydrocarbons) and solvent-based paints and varnishes.
and varnishes. |
Tech. Details
| Product information | ||
| Product Information | Name | Double diaphragm pump DF50 1/2" Acetal/PTFE |
| Model |
DF50 1/2" Acetal/PTFE | |
| Series |
Directflo® | |
| Manufacturer |
Samoa Industrial | |
| Product Number Manufacturer |
DF50PDSTSTTBAS | |
| Technical data: |
Pumps type | Double diaphragm pump |
| Max delivery capacity (l/h) | 3000 | |
| Max. Pressure (bar) | 8 | |
| Dry suction height (up to max. mWS*): | 6 | |
| Max intake height (m) | 8 | |
| Air pressure (max. bar): | 8 | |
| Air pressure start-up (min. bar): | 1.5 | |
| Displacement per chamber ( in cm³): | 100 | |
| Displacement per cycle ( in cm³): | 200 | |
| Sound pressure level ( in dB) | 80 | |
| Construction |
Size (inch) | 1/2" |
| Air intake ( Ø mm) | 3/8" NPSM (F) | |
| Internal pressure (inches) | 1/2" | |
| Suction nozzle (inch) inside | 1/2" | |
| Features: |
Explosion protection | Yes |
| Connection: | Thread (type/size) | 1/2" BSP |
| Certification |
2006/42/EC & Ex II2 GD IIB/IIC 95°C | |
| Controls: |
Controls: | Pneumatic |
| Performance: | Performance: | 50 l/min |
| Mounting variants (floor/wall) |
Floor/Wall | |
| Fabrics: |
Housing (air area) | Polypropylene |
| Housing (media contact) |
Conductive acetal | |
| Valve ball |
PTFE | |
| Membrane |
PTFE | |
| Gasket |
PTFE | |
| valve seat |
Stainless steel | |
| Pushrod |
Stainless steel | |
| Medium: | Solids (max. ø mm): | 3 |
| Promoted medium temperature (max °C): |
0 - 70 | |
| Supply information: |
Gross/net weight (kg) | 2.2 |
| Country of origin |
ES | |
| Tariff number |
8413 5080 | |
| Product (pcs) |
1 pc. | |
| Accessories |
n.a. | |
