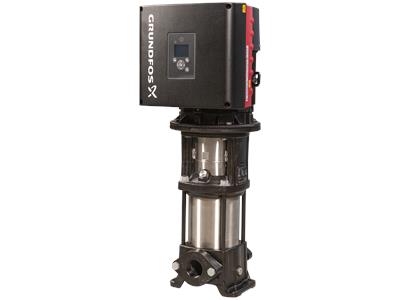

Grundfos CRE 10-6 P-A-E-HQQE Vertical centrifugal pump 99071445
Nominal volumetric flow (m³/h): 12.1 | Nominal head (m): 71.1 | Media temperature range (°C): -20 .. 120 | Minimum efficiency index, MEI ≥: 0.7 | Rated motor power P2 (kW): 3 | Impeller material: EN 1.4301
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 99071445 Vertical centrifugal pump CRE 10-6 P-A-E-HQQE
Product number: 99071445
EAN number: 5712606191376
Vertical multistage centrifugal pump with integrated frequency converter. Head and foot piece made of grey cast iron. All other wetted parts made of stainless steel 1.4301.
Accessories
No installation kit |
Tech. Details
| Product information | ||
| Product information | Type. | Vertical centrifugal pump. |
| Product number |
99071445 | |
| Product name |
CRE 10-6 P-A-A-E-HQQE | |
| EAN number |
5712606191376 | |
| Electrical data |
Motor rated power P2 (kW) | 3 |
| Net frequency (Hz) | 50 / 60 | |
| Power factor Cos phi | 0.91-0.86 | |
| Nominal speed (1/min) | 360-4000 | |
| Efficiency (%) | 0.907 | |
| Protection class (according to IEC 34-5) | IP55 | |
| Heat class (IEC 85) | F | |
| Motor efficiency at 3/4 load (%) | K.A. | |
| Motor efficiency at half load (%) | K.A. | |
| Motor pole | K.A. | |
| Installation |
Maximum ambient temperature (°C) | 50 |
| Max. Pressure at given temperature (bar_°C) | 16 / 120 | |
| Media temperature range (°C) | -20 ... 120 | |
| Maximum media temperature during operation (°C) | 20 | |
| Size of motor flange. | FT130 | |
| Size of the suction port. | 1 1/2 inch | |
| Print port size. | 1 1/2 inch | |
| Technical data |
Pump speed (1/min) | 3514 |
| Nominal flow rate (m³/h) | 12.1 | |
| Nominal head (m) | 71.1 | |
| Max. head (m) | 88.8 | |
| GLRD code. | HQQE | |
| Tariff No. |
CE,EAC,UKCA,SEPRO | |
| Max. Operating pressure (bar) | 16 | |
| Pump alignment. | Vertical | |
| Nominal pressure stage | PN 16 | |
| Cooling | K.A. | |
| Materials | Pump housing. | K.A. |
| Impeller material |
EN 1.4301 | |
| Impeller material according to ASTM |
AISI 304 | |
| Storage |
SIC | |
| Others | Minimum Efficiency Index, MEI ≥. | 0.7 |
| Net weight (kg) |
55 | |
| Country of origin |
HU | |
| Tariff No. |
84137075 | |
| Shipping vol. (m³) |
0.234 | |
| Sales region |
K.A. | |
| Norwegian NRF No. |
K.A. | |
