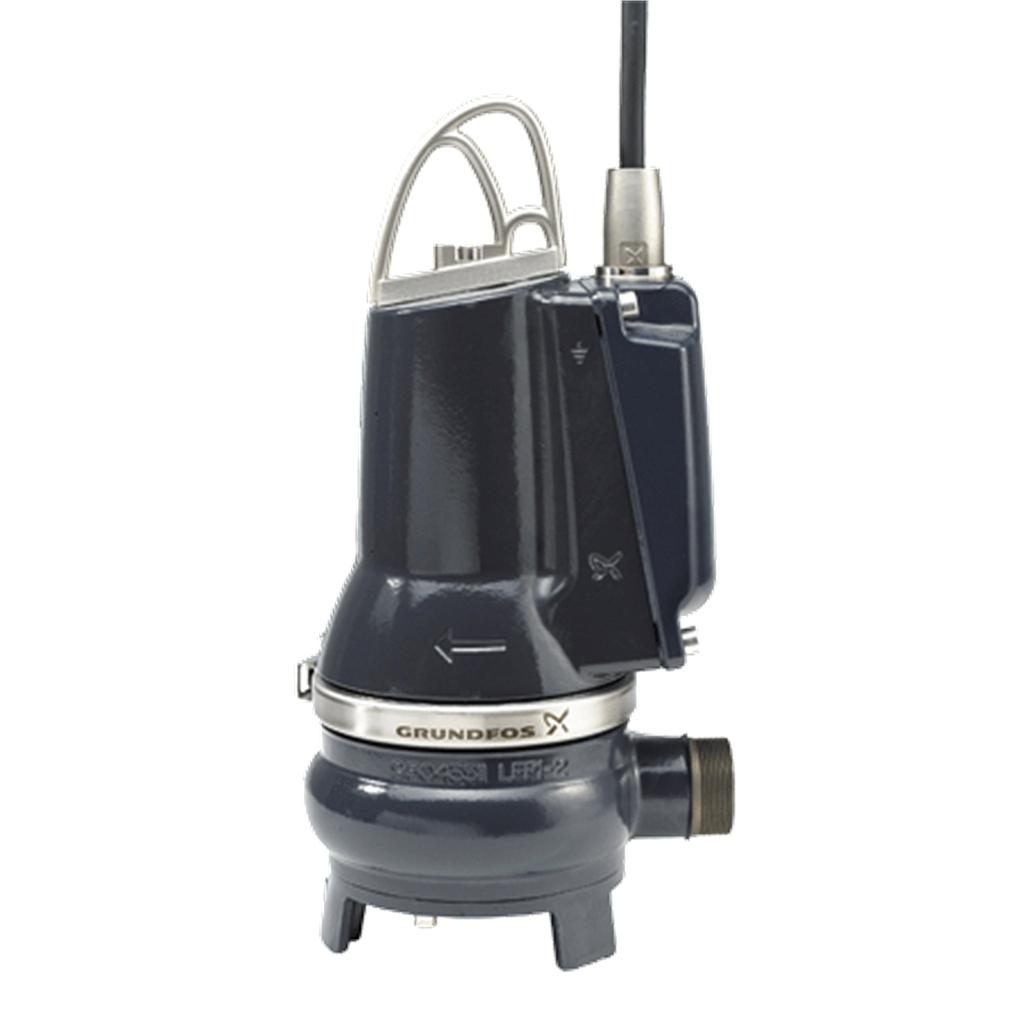

Grundfos EF30.50.09.E.2.1.502 Submersible waste water pump 96877515
Maximum delivery head: 16.8 m | Maximum flow rate: 10.8 l/s | Media temperature range: 0 ... 40 °C | Nominal current at 3/4 charge: 5.1 A | Nominal speed: 2870 1/min
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 96877515 Submersible waste water pump in grey cast iron EF30.50.09.E.2.1.502
Product number: 96877515
EAN Number: 5700312521501
Dirty water pump with single-bladed, semi-open impeller with 30 mm free passage for pumping slightly contaminated dirty water, seepage water and surface water also with long-fibre constituents.
Accessories
All measurement data can be evaluated and changes to the factory settings can be made via the CIU extension module as a permanent interface or the PC Tool Link as a temporary interface. |
Tech. Details
| Product information | ||
| Product information. | Type | Submersible sewage pump in grey cast iron |
| Product number |
96877515 | |
| Product name |
EF30.50.09.E.2.1.502 | |
| EAN number |
5700312521501 | |
| Electrical data |
Power consumption P1 | 1.3 kW |
| rated engine power P2 | 0.9 kW | |
| Mains frequency | 50 Hz | |
| Dimensioning voltage | 1 x 230 V | |
| Voltage tolerance | +6/-10 % | |
| Max starts per hour | 30 | |
| Designated flow | 6.1 A | |
| Nominal current at 3/4 charge | 5.1 A | |
| Nominal current at 1/2 charge | 4.1 A | |
| Start-up current | 38 A | |
| Current at idle | 2.6 A | |
| Cos phi - power factor | 0.96 | |
| Cos phi at 3/4 load | 0.92 | |
| Cos phi at 1/2 load | 0.86 | |
| Nominal speed | 2870 1/min | |
| Start-up moment | 6.5 Nm | |
| Motor stall torque | 7 Nm | |
| Torque of inertia | 0.0037 kg m² | |
| Efficiency of the engine at full load | 0.67 | |
| Efficiency of the engine at 3/4 load | 0.63 | |
| Motor efficiency at half load | 0.55 | |
| Motorpole | 2 | |
| Power-on | Direct | |
| Protection class (according to IEC 34-5) | IP68 | |
| Heat class (IEC 85) | F | |
| Cable length | 10 m | |
| Cable type | 07RN8-F | |
| Type of cable connector | No plug | |
| The size of the operating capacitor | 20 µF | |
| Ex protection standard | K.A. | |
| Temperature protection | K.A. | |
| Installation |
Maximum ambient temperature | 40 °C |
| Max. Operating pressure | 6 bar | |
| Connection discharge nozzle | R 2 | |
| Maximum recess depth | 10 m | |
| Dry / wet installation | S | |
| Automatic clutch foot manifold | Y | |
| Technical data |
Maximum flow rate | 10.8 l/s |
| Maximum head | 16.8 m | |
| Type of impeller | Half open | |
| Maximum grain size | 30 mm | |
| Sleeve seal | SIC/SIC | |
| Max. hydraulic efficiency | 0.6 | |
| Characteristic tolerance | ISO9906:2012 3B2 | |
| Certification mark on the type plate | K.A. | |
| Supporting medium. | Media temperature range | 0 ... 40 °C |
| Materials | Pump casing | Grey cast iron |
| Wheels | Grey cast iron | |
| Type of control | Additional inputs/outputs | Build in |
| Others | Net weight | 38 kg |
| Danish VVS No. | 391292632 | |
| Swedish RSK No. | 5885969 | |
| Fine LVI No. | 4822608 | |
| Norwegian NRF No. | 9045586 | |
| Country of origin | HU | |
| Tariff No. | 84137021 | |
Properties:
Dirty and storm water with fibrous and abrasive components. |
Vertical, single-stage block unit for wet installation. With carrying handle, 10 m cable, fully automatic control and free cable end. . |
Control via integrated level sensors. The unique AUTOADAPT function switches on and off fully automatically. The AUTOADAPT pumps feature dry-running protection, motor protection, automatic pump changeover operation for up to 4 pumps, a regular test or trial run, as well as a randomly generated switch-on delay in the event of a power failure as standard. |
For use in potentially explosive atmospheres, the pump in version E has, among other things, an Ex-separating barrier built in as standard. |
The open single-channel impeller has a free passage of 30 mm. |
Double sealing system as compact cartridge seal. Oil barrier chamber filled with physiologically harmless special oil, can be checked from the outside. |
The motor has 2 sets of thermoswitches for temperature monitoring in the winding and is designed for S1 - and S3 - operation in submerged condition. |
Cable entry: via stainless steel push-in fitting, cable cast longitudinally watertight. Service-friendly stainless steel clamping band for quick separation of motor and hydraulics. |
The pump has an R 2 discharge nozzle for portable as well as stationary use in manholes. The discharge nozzle can be mounted in two positions (rotated 180°) to the motor. |
