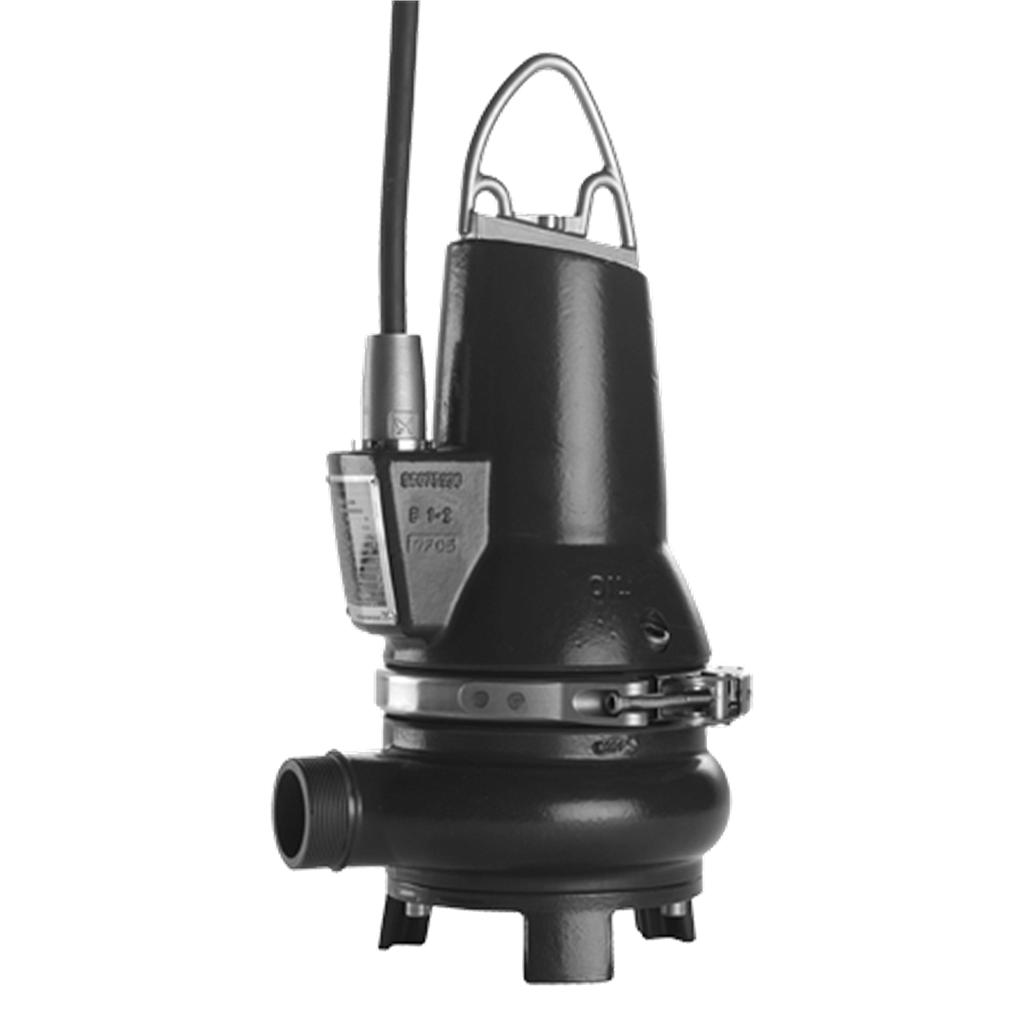

Grundfos EF30.50.06.EX.2.1.502 Submersible waste water pump 96106547
Maximum delivery head: 13.6 m | Maximum flow rate: 9 l/s | Media temperature range: 0 ... 40 °C | Nominal current at 3/4 charge: 4.1 A | Nominal speed: 2920 1/min
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 96106547 Submersible waste water pump in grey cast iron EF30.50.06.EX.2.1.502
Product number: 96106547
EAN Number: 5700396854007
Dirty water pump with single-bladed, semi-open impeller with 30 mm free passage for pumping slightly contaminated dirty water, seepage water and surface water also with long-fibre constituents.
Accessories
No installation set |
Tech. Details
| Product information | ||
| Product information. | Type | Dirty water submersible pump made of grey cast iron |
| Product number |
96106547 | |
| Product name |
EF30.50.06.EX.2.1.502 | |
| EAN number |
5700396854007 | |
| Electrical data |
Power consumption P1 | 1 kW |
| Motor rated power P2 | 0.6 kW | |
| Mains frequency | 50 Hz | |
| Dimensioning voltage | 1 x 230 V | |
| Voltage tolerance | +6/-10 % | |
| Max starts per hour | 30 | |
| rated current | 4.8 A | |
| Nominal current at 3/4 charge | 4.1 A | |
| Nominal current at 1/2 charge | 3.4 A | |
| Start-up current | 38 A | |
| Current at idle | 2.6 A | |
| Cos phi - power factor | 0.90 | |
| Cos phi at 3/4 load | 0.86 | |
| Cos phi at 1/2 load | 0.81 | |
| Nominal speed | 2920 rpm | |
| Start-up moment | 6.5 Nm | |
| Motor stall torque | 7 Nm | |
| Torque of inertia | 0.0035 kg m² | |
| Efficiency of the engine at full load | 0.61 | |
| Motor efficiency at 3/4 load | 0.55 | |
| Motor efficiency at half load | 0.42 | |
| Motorpole | 2 | |
| Power-on | Direct | |
| Protection class (according to IEC 34-5) | IP68 | |
| Heat class (IEC 85) | F | |
| Cable length | 10 m | |
| Cable type | H07RN-F | |
| Type of cable plug | No plug | |
| The size of the operating capacitor | 30 µF | |
| Ex protection standard | EN50014/EN50018, class EEx d IIB T4 | |
| Temperature protection | Internally | |
| Installation |
Maximum ambient temperature | 40 °C |
| Max. Operating pressure | 6 bar | |
| Connection discharge nozzle | R 2 | |
| Maximum built-in depth | 10 m | |
| Dry / wet installation | S | |
| Automatic clutch foot manifold | Y | |
| Technical data |
Maximum flow rate | 9 l/s |
| Maximum head | 13.6 m | |
| Wheel type | Half open | |
| Maximum grain size | 30 mm | |
| Slip ring seal | SIC/SIC | |
| Max. hydraulic efficiency | 0.63 | |
| Characteristic tolerance | ISO9906:2012 3B2 | |
| Certification mark on the nameplate | LGA, ATEX | |
| Delivery medium | Media temperature range | 0 ... 40 °C |
| Materials | Pump housing | Grey cast iron |
| Impeller | Grey cast iron | |
| Type of control | Additional inputs/outputs | External |
| Others | Net weight | 42 kg |
| Danish VVS No. | 391292512 | |
| Swedish RSK No. | K.A. | |
| Fine LVI No. | K.A. | |
| Norwegian NRF No. | K.A. | |
| Country of origin | HU | |
| Tariff No. | 84137021 | |
Properties:
Dirty and precipitation water with fibrous and abrasive components. |
Vertical, single-stage block unit for wet installation with carrying handle. The open single-channel impeller has a free passage of 30 mm. . |
Double sealing system as compact cartridge seal. Oil barrier chamber filled with physiologically safe special oil, can be checked from outside. |
The explosion-proof motor has 2 sets of thermoswitches for temperature monitoring in the winding and is designed for S1 - and S3 - operation in submerged condition. |
Cable entry: via stainless steel push-in fitting, cable cast longitudinally watertight. Service-friendly stainless steel clamping band for quick separation of motor and hydraulics. |
The pump has an R 2 discharge nozzle for transportable as well as stationary use in manholes. The discharge nozzle can be mounted in two positions (rotated 180°) to the motor. |
