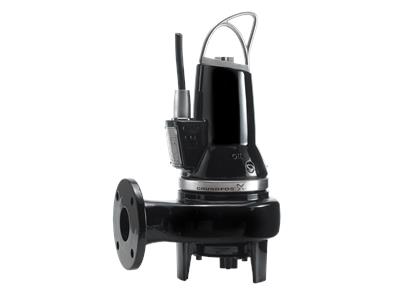

Grundfos SL1.50.65.09.2.1.502 wastewater pump 96106562
Max. delivery head: 11.5 m | Max. flow rate: 16.2 l/s | Max. operating pressure: 6 bar | Rated speed: 2720 rpm Operating pressure: 6 bar | Rated current: 6.1 A | Rated speed: 2920 1/min
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 96106562 wastewater pump SL1.50.65.09.2.1.502
Product Number: 96106562
Product ID: 5700396854465
Wastewater pumps (1.1 to 11 kW) with S-tube impeller. Depending on the size, the free passage is 50 to 100 mm. Non-self-priming, single-stage submersible pump for pumping wastewater, service water and untreated raw sewage. The pump is designed for wet installation in intermittent or continuous operation. With S-tube® impeller with a free ball passage of 50 mm. For wastewater with a dry matter content of up to 3 %. With service-friendly stainless steel clamping band for quick separation of motor and hydraulics. No special tools required. Pipe connection via flange DIN.
Accessories
No installation set |
Tech. Details
| Product information | ||
| Product Information | type | Sewage pump |
| Product number |
96106562 | |
| Product Name |
SL1.50.65.09.2.1.502 | |
| EAN number |
5700396854465 | |
| Electrical data |
Power input P1 | 1.3 kW |
| Motor rated power P2 | 0.9 kW | |
| Net frequency | 50 Hz | |
| Dimensioning voltage | 1 x 230 V | |
| Voltage tolerance | +6/-10 % | |
| Max starts per hour | 30 | |
| rated current | 6.1 A | |
| Maximum power consumption | K.A. | |
| Current at idle | 2.6 A | |
| Motor efficiency at full load | 0.67 | |
| Motor efficiency at 3/4 load | 0.63 | |
| Motor efficiency at half load | 0.55 | |
| Motorpole | K.A. | |
| Switch-on type | Direct | |
| Protection class (according to IEC 34-5) | IP68 | |
| Isolation class (IEC 85) | K.A. | |
| Explosion-proof | no | |
| Cable length | 10 m | |
| Cable type | H07RN-F | |
| Cable size | K.A. | |
| Resistance | K.A. | |
| Winding resistance | K.A. | |
| Nominal current at 3/4 charge | 5.1 A | |
| Nominal current at 1/2 charge | 4.1 A | |
| Size of the operating capacitor | 30 µF | |
| Heat class (IEC 85) | F | |
| Installation |
Environmental temperature | K.A. |
| Max. Operating pressure | 6 bar | |
| Size of the suction port | K.A. | |
| Size of pressure port | DN 65 | |
| Name print | PN 10 | |
| Maximum installation depth | 10 m | |
| Dry / wet set-up | SUBMERGED | |
| Automatic clutch foot manifold | 96090992 | |
| Standing foot | K.A. | |
| Size of construction | K.A. | |
| Technical data |
Maximum flow rate | 16.2 l/s |
| Maximum discharge head | 11.5 m | |
| Wheel type | Input channel | |
| Maximum grain size | 50 mm | |
| Approvals | K.A. | |
| Designated speed | 2920 1/min | |
| Slip ring seal | SIC/SIC | |
| Certification mark on the nameplate | EN 12050-2 | |
| characteristic tolerance | ISO9906:2012 3B2 | |
| Cooling jacket | Without cooling jacket | |
| Cargo. | Media temperature range | K.A. |
| Materials | Pump casing | Grey cast iron |
| Pump casing | K.A. | |
| Impeller material | Grey cast iron | |
| Impeller | EN-GJS-500-7 | |
| Impeller material according to ASTM | K.A. | |
| engine | EN-GJL-200 | |
| Secondary shaft seal | K.A. | |
| Type of control. | Moisture sensor | Without humidity sensor |
| Control panel | not built-in | |
| Water-in-oil sensor | without leakage sensor | |
| Others | Net weight | 53.3 kg |
| Gross weight | K.A. | |
| Shipping vol. | K.A. | |
| Country of origin | HU | |
| Tariff No. | 84137021 | |
| Sales region | K.A. | |
| Fine LVI No. | K.A. | |
| Swedish RSK No. | K.A. | |
| Norwegian NRF No. | K.A. | |
