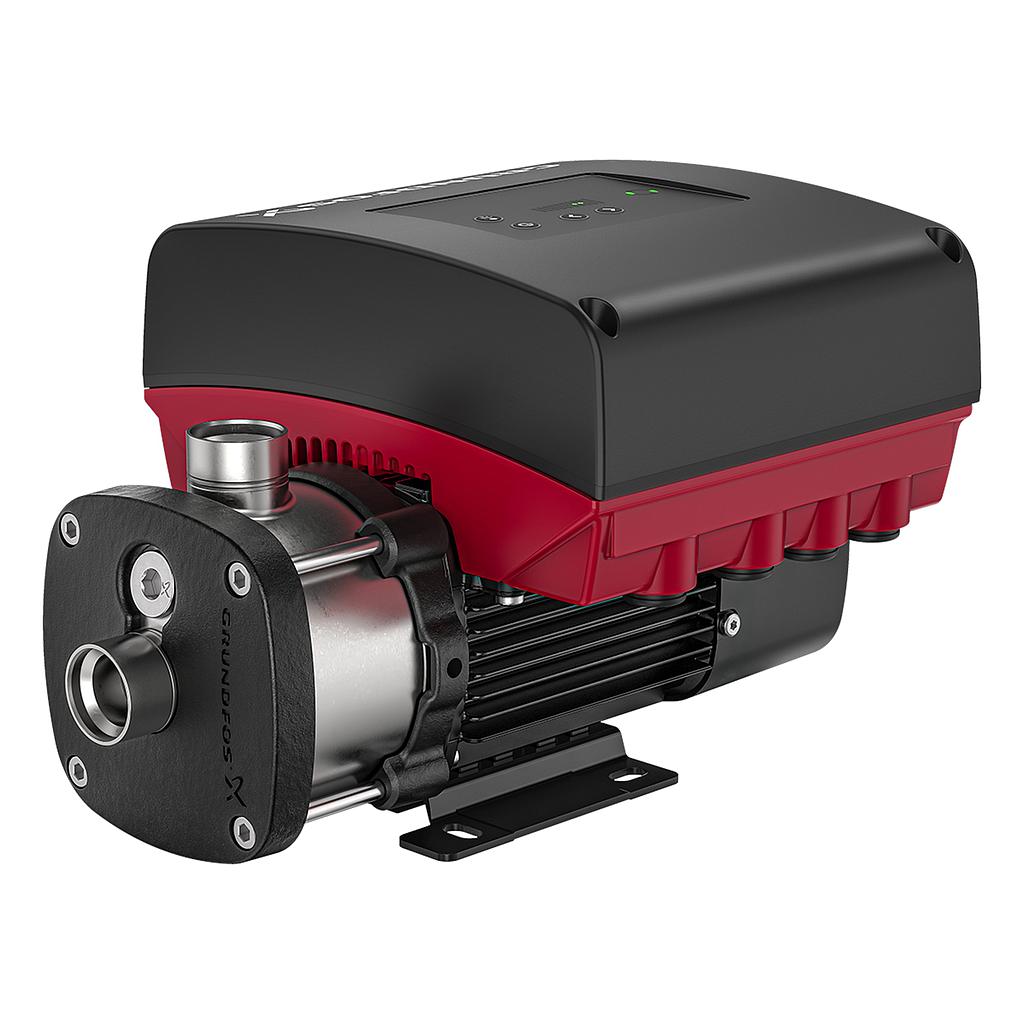

Grundfos CME 1-6 A-R-G-E-AQQE S-A-D-N compact horizontal suction pump 98395124
Nominal delivery head: 54.38 m | Max. Operating pressure: 16 bar | Media temperature range: -20 ... 120 °C | Nominal power - P2: 1.1 kW | Nominal flow rate: 2.04 m³/h
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 98395124 compact horizontal suction pump CME 1-6 A-R-G-E-AQQE S-A-D-N
Product number: 98395124
EAN Number: 5711494284580
The CME is a reliable, quiet and compact horizontal suction pump with integrated frequency converter and intelligent functions. Thanks to the modular pump design, customised solutions can be easily implemented.
Accessories
No installation set |
Tech. Details
| Product information | ||
| Product Information | Type | Compact horizontal suction pump |
| Product number |
98395124 | |
| Product name |
CME 1-6 A-R-G-E-AQQE S-A-D-N | |
| EAN number |
5711494284580 | |
| Electrical data |
Std. engine | IEC |
| Size | 80B | |
| Nominal Power - P2 | 1.1 kW | |
| Net frequency | 50 / 60 Hz | |
| Suitable for 50/60 Hz | yes | |
| Designated voltage | K.A. | |
| Operating Factor | K.A. | |
| rated current | 2.20-1.90 A | |
| Start-up current | K.A. | |
| Nominal speed, 50 Hz | K.A. | |
| Protection class (according to IEC 34-5) | IP55 | |
| Insulation class (IEC 85) | F | |
| Engine protection | K.A. | |
| With cable (yes/no) | K.A. | |
| Installation |
Environmental temperature | -20 ... 55 °C |
| Max. Operating pressure | 8216 bar | |
| Max. Pressure at given temperature | 8216 bar / 90 °C | |
| Connection type | 82Rp | |
| Size of the suction nozzle | 821 inch | |
| Size of the pressure port | 821 inch | |
| Code connection type | 82R | |
| Technical data |
Pump speed | 2900 1/min |
| Nominal electricity | 2.04 m³/h | |
| Rated head | 54.38 m | |
| No. of impellers | 6 | |
| GLRD Code | AQQE | |
| Approvals | CE,EAC,CURUS | |
| Drinking water approvals | WRAS,ACS,NSF61,UBA | |
| Code execution | A | |
| Code Model | A | |
| Type of control. | Frequency inverters | integrated |
| Materials. | Pump housing | Stainless steel |
| Pump jacket | EN 1.4401 | |
| Wheel material | Stainless steel | |
| Impeller | EN 1.4401 | |
| Impeller material according to ASTM | AISI 316 | |
| code material | G | |
| Promoting medium | Medium temperature range | -20 ... 120 °C |
| Media temperature during operation | 20 °C | |
| Density | 998.2 kg/m³ | |
| Others | Position of the terminal box | 12 o'clock |
| Minimum Efficiency Index MEI ≥ | 0.68 | |
| Net weight | 18.3 kg | |
| Gross weight | 20.2 kg | |
| Country of origin | HU | |
| Tariff No. | 84137075 | |
Properties
Compact, reliable, horizontal, multi-stage, normal-priming centrifugal pump with axial suction and discharge. The wetted parts of the pump are made of high-quality stainless steel. The mechanical seal is a specially designed, non-relieved O-ring seal. Pipe connection via Whithworth female pipe thread Rp (ISO 7/1). The pump is equipped with a 3-phase, fan-cooled permanent magnet synchronous motor. The motor efficiency corresponds to energy efficiency class IE5 according to IEC 60034-30-2. |
