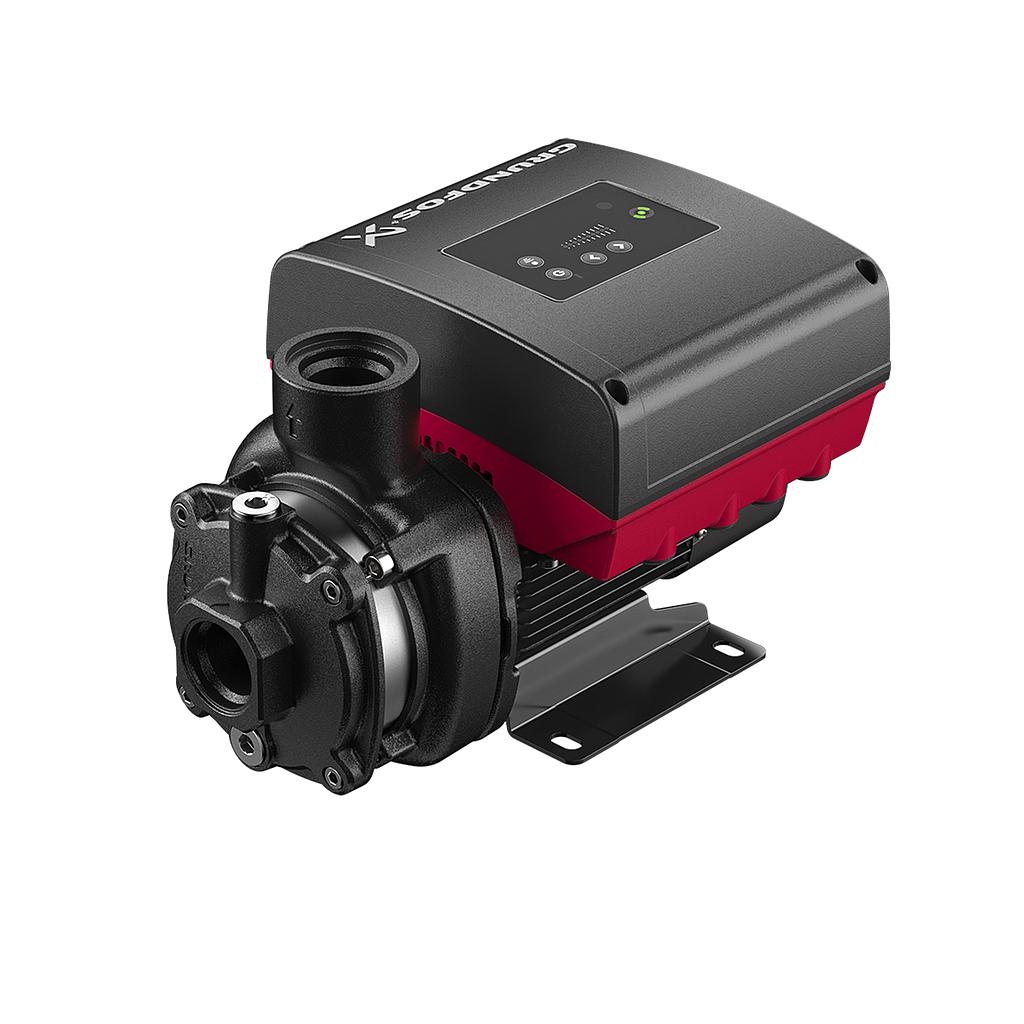

Grundfos CME 3-3 A-S-A-E-AQQE T-A-D-N compact horizontal suction pump 98395252
Nominal delivery head: 29.68 m | Max. Operating pressure: 10 bar | Media temperature range: -20 ... 90 °C | Nominal power - P2: 1.1 kW | Nominal flow rate: 3.72 m³/h
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 98395252 compact horizontal suction pump CME 3-3 A-S-A-E-AQQE T-A-D-N
Product number: 98395252
EAN Number: 5711494286935
The CME is a reliable, quiet and compact horizontal suction pump with integrated frequency converter and intelligent functions. Thanks to the modular pump design, customised solutions can be easily implemented.
Accessories
No installation set |
Tech. Details
| Product information | ||
| Product Information | Type | Compact horizontal suction pump |
| Product number |
98395252 | |
| Product name |
CME 3-3 A-S-A-E-AQQE T-A-D-N | |
| EAN number |
5711494286935 | |
| Electrical data |
Std. engine | NEMA |
| Size | 80B | |
| Nominal Power - P2 | 1.1 kW | |
| Net frequency | 50 / 60 Hz | |
| Suitable for 50/60 Hz | yes | |
| Dimensioning voltage | K.A. | |
| Operating factor | 42005 | |
| Nominal current | 2.05 A | |
| Start-up current | K.A. | |
| Nominal speed, 50 Hz | K.A. | |
| Protection class (according to IEC 34-5) | IP55 | |
| Insulation class (IEC 85) | F | |
| Engine protection | K.A. | |
| With cable (yes/no) | K.A. | |
| Installation |
Environmental temperature | -20 ... 55 °C |
| Max. Operating pressure | 4410 bar | |
| Max. Pressure at given temperature | 4410 bar / 90 °C | |
| Connection type | 44NPT(F) | |
| Size of the suction nozzle | 441 inches | |
| Size of the pressure port | 441 inches | |
| Code Connection type | 44S | |
| Technical data |
Pump speed | 2900 1/min |
| Nominal electricity | 3.72 m³/h | |
| Rated head | 29.68 m | |
| No. of impellers | 3 | |
| GLRD Code | AQQE | |
| Approvals | CE,EAC,CURUS | |
| Drinking water approvals | WRAS,ACS,NSF61 | |
| Code execution | A | |
| Code Model | A | |
| Type of control. | Frequency inverter | integrated |
| Materials | Pump housing | Grey cast iron |
| Pump casing | EN-GJL-200 | |
| Wheel material | Stainless steel | |
| Wheels | EN 1.4301 | |
| Wheel material according to ASTM | AISI 304 | |
| code material | A | |
| Promoting medium. | Media temperature range | -20 ... 90 °C |
| Media temperature during operation | 20 °C | |
| Density | 998.2 kg/m³ | |
| Other. | Position of the terminal box | 12 o'clock |
| Minimum Efficiency Index MEI ≥ | 0.7 | |
| Net weight | 16.6 kg | |
| Gross weight | 18.3 kg | |
| Country of origin | HU | |
| Tariff No. | 84137075 | |
Properties
Compact, reliable, horizontal, multi-stage, normal-priming centrifugal pump with axial suction and discharge. The shaft, impellers and chambers are made of stainless steel. The inlet and outlet parts are made of grey cast iron. The mechanical seal is a specially designed, non-relieved O-ring seal. Pipe connection via NPT female pipe thread. The pump is equipped with a 3-phase, fan-cooled permanent magnet synchronous motor. The motor efficiency corresponds to energy efficiency class IE5 according to IEC 60034-30-2. |
