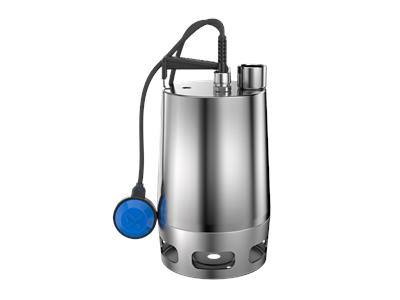

Grundfos UNILIFT AP35.40.06.A1V drainage and wastewater pumps 96001777
Maximum flow rate: 15012 l/h | H max: 10 m | Pump casing: stainless steel | Maximum installation depth: 2 m | Media temperature range: 0 ... 55 °C | Nominal current: 0.17 A
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 96001777 Drainage and waste water pumps UNILIFT AP35.40.06.A1V
Product no: 96001777
EAN number: 5700390897079
Drainage and waste water pumps in stainless steel for free-standing installation with a free passage of 35 mm for pumping non-aggressive water and grey water. The pump is suitable for mobile use and fixed installation inside and outside buildings
Accessories
No installation kit |
Tech. Details
| Product information | ||
| Product information. | Type | Drainage and waste water pumps |
| product number |
96001777 | |
| Product name |
UNILIFT AP35.40.06.A1V | |
| EAN number |
5700390897079 | |
| electrical data |
Power consumption P1 | 0.9 kW |
| Rated power - P2 | 0.6 kW | |
| Net frequency | 50 Hz | |
| rated voltage [V] | 1 x 230 V | |
| rated current | 0.17 A | |
| size of the operating capacitor | 16 µF/400 V | |
| Protection class (according to IEC 34-5) | IP68 | |
| Isolation class (IEC 85) | F | |
| contact | temperature protection | |
| temperature protection | internal | |
| Length of power cable | 5 m | |
| Type of cable plug | SCHUKO | |
| Installation |
connection type | Rp |
| control size | 171 1/2 inches | |
| Maximum installation depth | 172 m | |
| Technical data |
Maximum flow | 4.17 l/s |
| Maximum flow | 15012 l/h | |
| H max | 10 m | |
| Maximum particle size | 35 mm | |
| Designated speed | 2810 1/min | |
| rated current | K.A. | |
| nominal head | K.A. | |
| registrations | K.A. | |
| Supported medium. | media temperature range | 0 ... 55 °C |
| Density |
998.2 kg/m³ | |
| Materials | Impeller | EN 1.4301 |
| Pump housing |
K.A. | |
| engine |
K.A. | |
| type of control. | Float switch | Level switch |
| Others | net weight | 13.2 kg |
| Gross weight | 13.9 kg | |
| Danish VVS No. | K.A. | |
| Swedish RSK No. | K.A. | |
| Fine LVI No. | K.A. | |
| Norwegian NRF No. | K.A. | |
| country of origin | HU | |
| Tariff No. | 84137021 | |
Features:
Vertical 1-stage waste water pump in stainless steel design with vertical discharge nozzle and integrated floodable fully enclosed 1-phase motor and built-in thermal circuit breaker, corresponding to insulation class F. |
The pump is equipped with an inlet strainer and a float switch for automatic ON-OFF. |
The pump has a semi-open impeller with delivery of surface water, groundwater and rainwater. |
The pump has a double shaft seal consisting of a mechanical seal and an oil barrier chamber filled with a harmless special oil. |
The pump is equipped with a riser pipe, maintenance-free, permanently lubricated roller bearings and a cooling jacket through which the pumped medium flows and which permanently cools the motor. |
The pump is suitable for stationary and portable use. To prevent moisture from entering the stator windings, the mains cable is fitted with moulded lead contacts. |
In intermittent operation, 20 switching cycles per hour. |
Mains and float switch cables are pluggable. The potting compound made of glass in the socket prevents moisture from penetrating the motor winding. |
