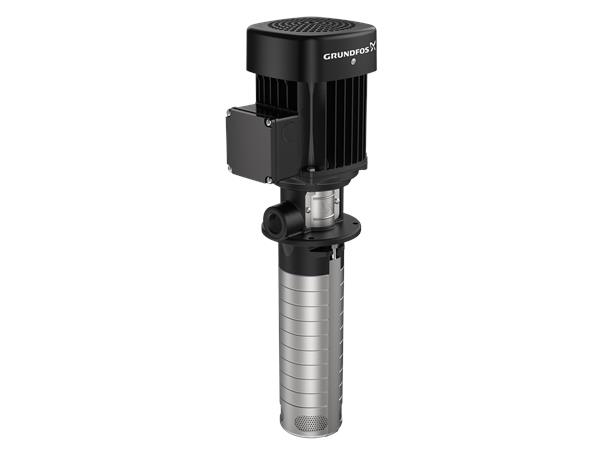

Grundfos SPK 1-1/1 A-W-A-AUUV Cooling lubricant pump 3HAH5061
EAN number: 5700391822155 | Nominal flow rate: 20 l/min | Nominal head: 4.8 m | Maximum ambient temperature: 40 °C | Media temperature range: -10 ... 90 °C | Mains frequency: 60 Hz | Rated voltage: 3 x 220-277D/380-480Y V
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 3HAH5061 Cooling lubricant pump SPK 1-1/1 A-W-A-AUUV
Product code: 3HAH5061
EAN Number: 5700391822155
Normal priming, multistage centrifugal immersion pump for vertical and horizontal tank installation with 3-phase motor.
Accessories
No installation kit |
Tech. Details
| Product information | ||
| Product Information | Product name. | SPK 1-1/1 A-W-A-AUUV |
| Product number |
3HAH5061 | |
| EAN number |
5700391822155 | |
| Customs tariff no. |
84137075 | |
| Country of origin |
HU | |
| Electrical data |
Power consumption P1. | |
| Net frequency. | 60 Hz | |
| Dimensioning voltage. | 3 x 220-277D/380-480Y V | |
| Service Factor | K.A. | |
| Designated current. | 0.29/0.17 A | |
| Start-up current | K.A. | |
| nominal speed. | 3360-3460 1/min. | |
| Efficiency of the engine at full load. | K.A. | |
| Protection class (according to IEC 34-5) | IP55 | |
| Heat class (IEC 85) | F | |
| Installed motor protection. | none | |
| Std. engine | K.A. | |
| Size of construction | K.A. | |
| Multiple plugs. | K.A. | |
| IE efficiency class 50Hz. | K.A. | |
| Rated power - P2 | K.A. | |
| Suitable for 50/60 Hz. | K.A. | |
| number of phases | K.A. | |
| Maximum current consumption | K.A. | |
| Nominal speed, 50 Hz. | K.A. | |
| Efficiency. | K.A. | |
| Isolation class (IEC 85) | K.A. | |
| Motor protection. | K.A. | |
| Installation |
Maximum ambient temperature. | 40 °C |
| Connection discharge nozzle. | K.A. | |
| Installation length. | K.A. | |
| Code for pipe connection. | W | |
| Size of the pressure port. | K.A. | |
| Depth of immersion. | K.A. | |
| Max. Pressure at given temperature | K.A. | |
| Connection type | K.A. | |
| Technical data |
Nominal flow rate. | 20 l/min |
| Nominal head | 4.8 m | |
| Maximum funding | K.A. | |
| Test mark on the type plate. | K.A. | |
| Pump version. | A | |
| Model. | E | |
| Cable grommet. | K.A. | |
| GLRD Code | K.A. | |
| ISO acceptance class. | K.A. | |
| number of impeller chambers | K.A. | |
| No. of impellers. | K.A. | |
| Supported medium | Media temperature range. | -10 ... 90 °C |
| Media temperature during operation . |
20 °C | |
| Density | 998.2 kg/m³ | |
| Materials. | Pump casing. | K.A. |
| Wheel |
Stainless steel. | |
| Type code for material | A | |
| Wheel material according to ASTM. | K.A. | |
| Pump casing. | K.A. | |
| Type of control |
Position terminal box. | K.A. |
| Others | Net Weight | 9.3 kg |
| Gross weight | 10.6 kg | |
| Shipping volume. | K.A. | |
| Country of origin. | HU | |
| Tariff No. | 84137075 | |
| Minimum Efficiency Index MEI ≥. | K.A. | |
The pump has the following features:
Installation dimensions according to EN 12157 |
Wheels, intermediate chambers and multi-groove shaft made of stainless steel |
Slip ring shaft seal according to DIN 24960 (material pairing tungsten carbide/tungsten carbide) |
Power transmission through cast iron shell clutch |
